RTC (1 Product)
DS1904L-F5#
RTC iButton
- Real-Time Clock/calendar in binary format
- Clock accuracy is better than (±) 2 minutes per month at 25°C
- Over 10 years of operation
Security (1 Product)
Temperature (8 Products)
DS1920-F5+
Temperature iButton
- Temperature range from -55°C to +100°C
- Measures temperature in 0.5°C increments
- Zero Standby Power
DS1921G-F5#
Thermochron iButton
- Operating Temperature Range from -40°C to +85°C
- Measures temperature in 0.5°C increments
- Logs up to 2048 consecutive temperature measurements
DS1921H-F5#
High-Res. Thermochron iButton
- Operating Temperature Range from +15°C to +46°C
- Measures temperature in 1/8°C increments with ±1°C accuracy
- Logs up to 2048 consecutive temperature measurements
DS1921Z-F5#
High-Res. Thermochron iButton
- Operating Temperature Range from -5°C to +26°C
- Measures temperature in 1/8°C increments with ±1°C accuracy
- Logs up to 2048 consecutive temperature measurements
DS1922E-F5#
High-Temperature Logger iButton, 8KB Datalog Memory
- Operating Temperature Range from +15°C to +140°C
- Measures Temperature with 0.5°C or 0.0625°C Resolution
- Automatically Wakes up, Measures Temperature, and Stores up to 8192 Values in 8KB of Datalog Memory
Lead Time ~ 8 days
DS1922L-F5#
Temperature Logger iButton, 8KB Datalog Memory
- Operating Temperature Range from -40°C to +85°C
- Measures Temperature with 0.5°C or 0.0625°C Resolution
- Automatically Wakes up, Measures Temperature, and Stores up to 8192 Values in 8KB of Datalog Memory
DS1922T-F5#
Temperature Logger iButton, 8KB Datalog Memory
- Operating Temperature Range from 0°C to +125°C
- Measures Temperature with 0.5°C or 0.0625°C Resolution
- Automatically Wakes up, Measures Temperature, and Stores up to 8192 Values in 8KB of Datalog Memory
DS1925L-F5#
High-Capacity Temperature Logger iButton, 122KB Datalog Memory
- Operating Temperature Range from -40°C to +85°C
- Measures Temperature with 0.5°C or 0.0625°C Resolution
- Accuracy of ±0.5°C with Storage for Up to 125,440 Values
Temperature/Humidity (1 Product)
DS1923-F5#
Hygrochron Temp/Humidity Logger, 8KB Data-Log Memory
- Operating Range: -20 to +85°C; 0 to 100%RH (see Safe Operating Range in datasheet)
- Digital Hygrometer Measures Humidity with 0.6%RH or 0.04%RH Resolution
- Automatically Wakes Up, Measures Temperature and/or Humidity and Stores up to 8192 Values in 8KB of Datalog Memory
Temperature, waterproof (5 Products)

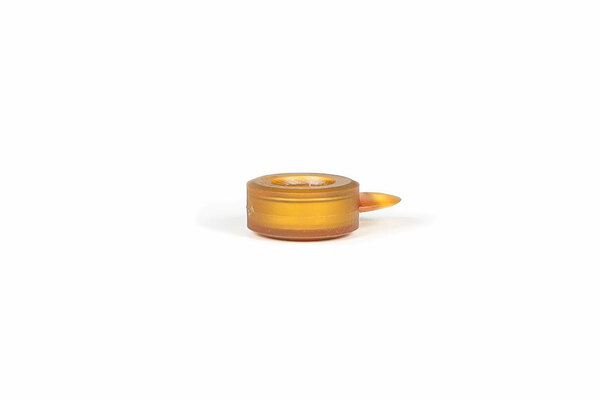

MF1921G
iButton Temperature Logger, water resistant according to IPX8
- Operating Temperature Range from -40°C to +85°C
- Measures temperature in 0.5°C increments
- Logs up to 2048 consecutive temperature measurements
Lead Time 2-7 days
MF1921H
iButton Temperature Logger, water resistant according to IPX8
- Operating Temperature Range from +15°C to +46°C
- Measures temperature in 1/8°C increments with ±1°C accuracy
- Logs up to 2048 consecutive temperature measurements
Lead Time 2-7 days
MF1921Z
iButton Temperature Logger, water resistant according to IPX8
- Operating Temperature Range from -5°C to +26°C
- Measures temperature in 1/8°C increments with ±1°C accuracy
- Logs up to 2048 consecutive temperature measurements
Temporarily out of stock
MF1925L
iButton Temperature Logger, water resistant according to IPX8
- Operating Temperature Range from -40°C to +85°C
- Measures Temperature with 0.5°C or 0.0625°C Resolution
- Accuracy of ±0.5°C with Storage for Up to 125,440 Values
Temporarily out of stock
MF1402
Reader Unit for MF-series iButtons
Lead Time 2-7 days
Memory (11 Products)
DS1977-F5#
Password-Protected 32KB EEPROM iButton
- Maintenance/Inspection Data Storage
- Medical Data Carrier
- Health Data Carrier
Only a few pieces left!
DS1982-F5+
1Kb Add-Only iButton
Lead Time ~ 10 days
DS1994L-F5+
4-kbit Plus Time Memory iButton
Temporarily out of stock
Services (4 Products)
